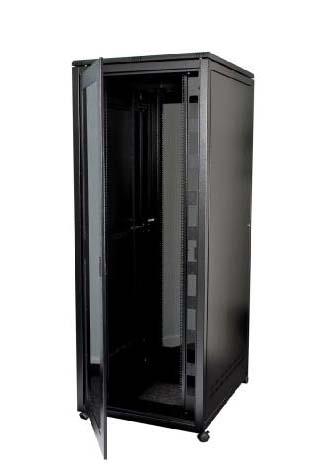

Server Cabinets

A Range of 19 inch server cabinets especially configured for the installation of network servers. Supplied ready assembled, on castors and with removable doors and side panels to ease installation. The range of server cabinets has extended depth to allow the fitment of server mounting slides and has additional ventilation for cooling of the equipment. There is also a full range of accessories and cable management components to allow smooth cable paths and shelves to support monitors, keyboards and KVM components within the enclosure.

Key Features

• Available in 3 heights from 27u to 42u
• Available in 600mm and 800mm widths
• Available in 1000mm depths
• Supplied with 6 off adjustable 19 inch panel mounts
• Toughened Glass Door with a slam lock and additional venting .
• Transit castors
• Mesh rear door with key lock

Server Cabinet Specifications

• Front and Rear welded frame construction
• Removable Side Panels with ventilation and a key lock
• Toughened glass insert to front door
• Slam lock fitted to front door
• Rear mesh steel door with key lock
• Max Static load– 500kg
• Powder Paint finish— black RAL9005
• 6 off Adjustable mounting profiles
• 4 off Cable management profiles fitted to 800mm wide cabinets
